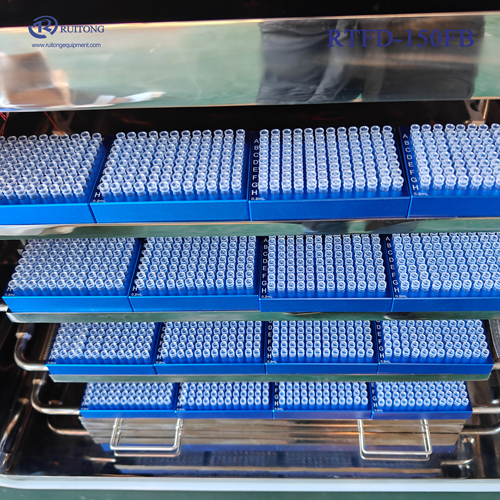

l Pre-freezing and drying process are both finished on shelf
l With electric heating function, increasing drying speed
l with programmable function, PID control standard
l Shelf temperature can be controlled by program
l 32 groups of program can be stored, and each program can be set up 36 segments

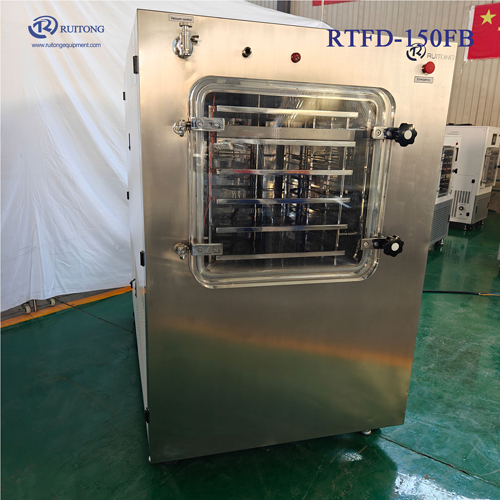

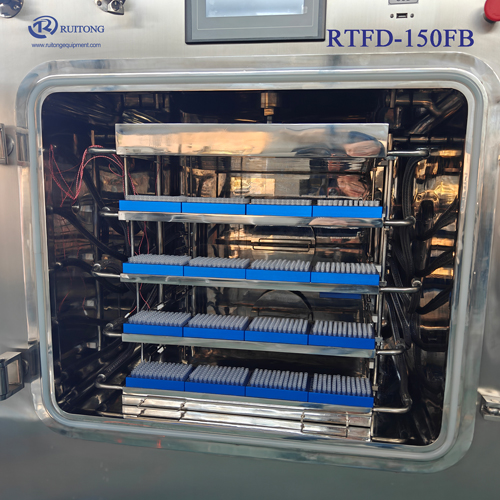

l With organic glass observation window, the whole process is easy to see
l Color LCD touch screen,English interface, display freeze drying curve, save data automatically
l Capping mode: Hydraulic system capping device（Top Hydraulic ）.
l Vacuum sensor type: Pirani vacuum sensor+capacitive vacuum sensor（Used for determining the endpoint of freeze-drying）
l Butterfly valve: End point detection function
l Set freeze drying program on touch screen
l Inner wall of drying chamber, condenser ,shelf, trays are of stainless steel 304
l With USB port to output drying data, to open and view in Excel format.
With Nitrogen inflation valve
Main technical parameter
|
|
Item |

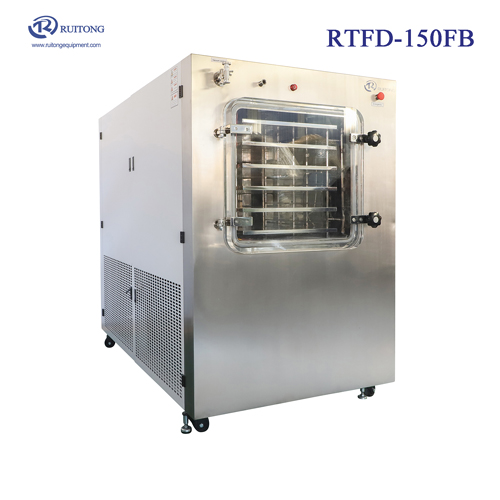

RTFD-150FB |
|
Drying chamber |
Freeze-drying area |
1.728㎡ |
|
Layers of shelf |
6+1 |
|
|
Temperature scope of shelf |
-60℃-+70℃ |
|
|
shelf temperature error |
±1℃(+20℃- -20℃) in balance ±1.5℃(-20℃- -35℃) in balance ±2℃(-30℃- -50℃) in balance |
|
|
liquid material |
17L 10mm thickness 34L 21mm thickness |
|
|
Number of vials, |
Φ 16 mm: 6600 |
|
|
shelf spacing |
100mm |
|
|
Size of shelf |
600mm*480mm*20mm |
|
|
condenser |
Min. Temperature of condenser |
≤-88℃ |
|
Water-capture capability |
Max 20Kg |
|
|
defrosting |
Electric defrosting |
|
|
Basic parameters |
final Vacuum degree |
≤2Pa （no-load） |
|
Style of cooling |
Fan cooling Ambient temperature is less than 25℃ |
|
Accessories |
|
02 x Centric ring, DN 10/16 KF connector 04 x Centric ring, DN 20/25 KF connector 03 x Centric ring, DN 32/40 KF connector 01 x O ring 4.47 x 1.78 mm 01 x O ring 10 x 2 mm 01 x O ring 12 x 2 mm 01 x O ring 8 x 2.5 mm 01 x Door sealing cord silicon, Ø 10 mm 01 x Drying cartridge with valve 01 x Pressure control valve 01 x Pressure control valve O ring 01 x Air filter sponge 100 x 100 01 x Pirani vacuum sensor or Capacitive vacuum sensor 01 x High vacuum control solenoid valve 01 x Pressure relief solenoid valve 01 x Defrost solenoid valve 01 x Sample temperature probe 01 x silicone oil 5L 01 x Vacuum Pump oil 5L |
|
Packaging and transportation data: 01 x 900mm x 600mm x600mm (L x W x H) 150KG |
