Model: RTFD- GZL10

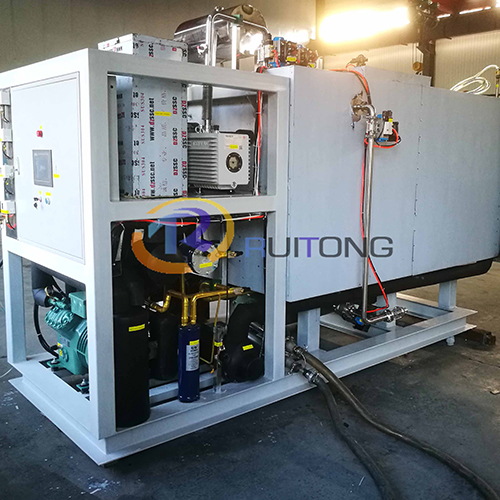

General Introduction: Freeze dryer RTFD-GLZ10 is suitable for drying product in bulk.
Freeze Drying Theory:  Freeze dryer is widely used in pharmacy, biology research, chemical industry and food production ,etc. After freeze drying process, a long term preservation for material is much easier. They can be restored to original state and maintain their chemical and biological characteristics after being watered. The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes the samples in advance, and then sublimates its moisture under vacuum state.
Description

Main Features

 *  PLC control standard, with programmable function

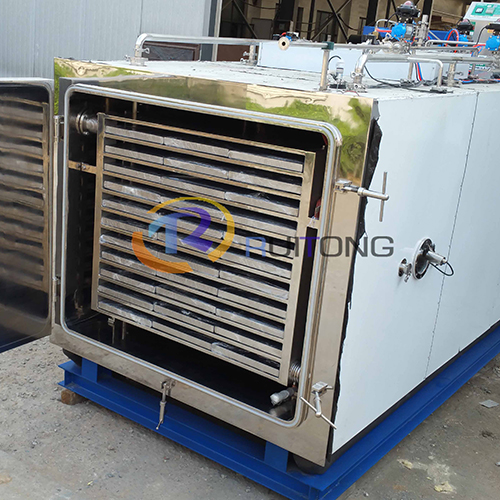

 *  Freeze and drying process are both made on shelf
 *  Silicon oil heating, shelf temperature accuracy is ± 1℃
 *  Color LCD touch screen, English interface, display of freeze drying curves, store data
 *  Login facility on control panel; Multilevel password protection,effectively prevent illegal operation.
 *  Inner wall of drying chamber, condenser ,shelf, trays are of stainless steel 304
 *  32 groups program can be stored, each program can be set up 36 segments
 *  With USB port to output drying data, to open and view in Excel format
 *  With Nitrogen inflation valve
 *  Alarm:ambient temperature too high , vacuum degree abnormal,condenser temp. too high, shelf temp. too high, pre-freeze finishing,drying process finishing

Options

    * vacuum degree adjustment      * Eutectic point test          * CIP system            * SIP system
    * Anti oil return valve for pump   * Exhaust filter for pump    * Air inlet filter for pump

    * PC and control software, to control freeze dryer in PC, save freeze drying data
