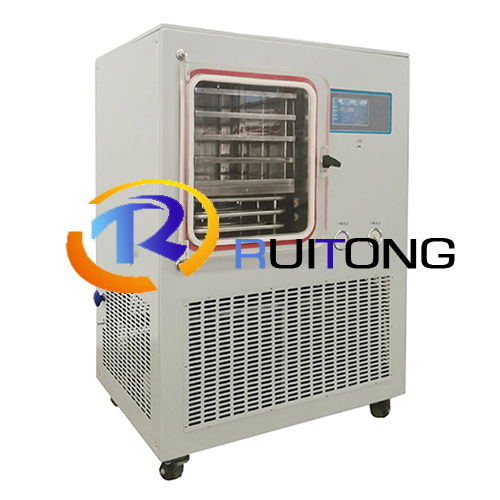

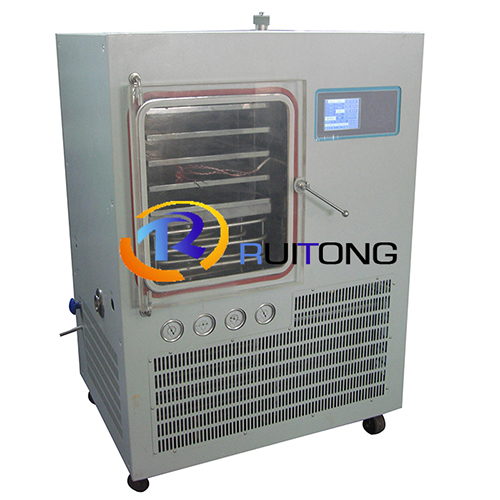

Model: RTFD-50FA
General Introduction: RTFD-50FA Freeze Dryer is suitable for pilot scale or small scale production .It is suitable for drying product in bulk, with heating shelf,freezing and drying process are finished on shelf.
Freeze Drying Theory: After freeze drying process, a long term preservation for material is much easier. They can be restored to original state and maintain their chemical and biological characteristics after being watered. The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes the samples in advance, and then sublimates its moisture under vacuum state.
Description

Main features

♦ Color LCD touch screen, display freeze drying curves, save data automatically
♦ Condenser with uniform and good ice capture function
♦ Flexible manual and automatic control mode, easy to operate
♦ Shelf temperature can be controlled by program on touch screen
♦ With USB port to output freeze drying data, open and view in Excel format
♦ Hundreds of recipe can be stored, and each recipe can be set up 36 segments
♦ Pre-freezing and drying process both finished on shelf, no need to move product
♦ Inner wall of drying chamber, condenser ,shelf, trays are made of stainless steel 304
♦ Multilevel password protection for login,effectively prevent illegal operation
♦ The user level and password can be set up, and the operation management can be divided
♦ Colorless, transparent acrylic door ,user can observe the whole process of freeze-drying
♦ With inert gas inflation valve, filling the inert gas after drying can keep products longer
♦ PLC control system for freeze-drying machine, with high reliability and stability
♦ sensor calibration functions to ensure accuracy of measured values in long-term use
♦ Historical curves and records can be checked, and storage cycles can be modified in real time
♦ Real-time alarm display, historical alarm query function for fault diagnosis and equipment maintenance
♦ Low viscosity medium circulating to control temperature , high precision of temperature control, shelf temperature uniformity ±1℃ ,drying effect is uniform
♦ The fuzzy control system, shelf temperature heating and cooling rate can be controlled under slop control

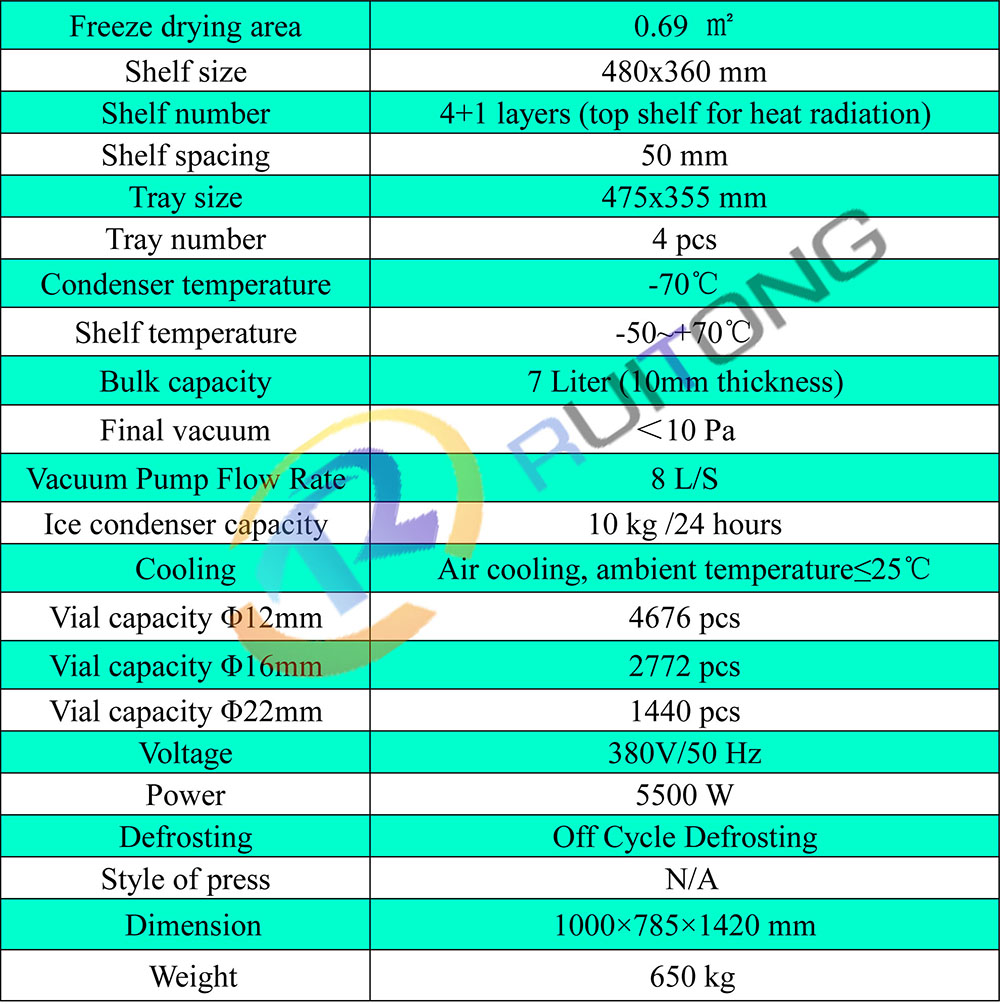

Technical Parameter
